HDI Rigid-flex PCB

HDI (High-Density Interconnect) rigid-flex PCBs represent an advanced variant of printed circuit boards that combine the benefits of both rigid and flexible PCB technologies. HDI technology enables these boards to offer increased component density, enhanced design flexibility, improved reliability, and space optimization. This article provides an overview of HDI rigid-flex PCBs, discussing their key features, manufacturing considerations, and applications. By understanding the advantages and considerations associated with HDI rigid-flex PCBs, engineers and designers can harness their potential for designing cutting-edge electronic devices.

What Is HDI Rigid-flex PCB?

HDI (High Density Interconnect) Rigid-flex PCB is a type of printed circuit board that combines rigid and flexible sections into a single board. It enables the design and production of complex electronic devices that require both flexibility and high component density. The rigid sections provide structural support and allow for the attachment of components, while the flexible sections enable bending and folding, making it suitable for applications with limited space or dynamic requirements. HDI technology allows for increased circuit density, smaller form factors, and improved signal integrity in electronic devices.

What Materials used for HDI Rigid-flex PCB Manufacturing?

HDI Rigid-flex PCBs are manufactured using a combination of materials to achieve the desired functionalities. The rigid sections typically use standard rigid PCB materials such as rigid laminates made of FR-4 (a flame-retardant glass epoxy material) or other high-performance materials like polyimide or PTFE (polytetrafluoroethylene). These materials provide rigidity, structural support, and excellent electrical performance.

For the flexible sections, materials such as polyimide (PI) or flexible liquid crystal polymer (LCP) are commonly used. These materials offer excellent flexibility, good thermal stability, and electrical insulation properties.

To interconnect the rigid and flexible portions, a transition material is used, such as adhesive-based bonding materials or coverlay films made of polyimide. These materials provide a reliable connection while allowing flexibility.

The choice of materials depends on various factors such as the application requirements, operating conditions, electrical performance, and cost considerations. Different combinations of materials can be used to tailor the HDI Rigid-flex PCB to meet specific needs.

Characteristics of HDI Rigid-flex PCB

HDI Rigid-flex PCBs possess several distinct characteristics that make them well-suited for specific applications:

High component density: HDI technology allows for the miniaturization of electronic devices by enabling a higher density of components and interconnections on the PCB. This is achieved through the use of advanced routing techniques, microvias, and smaller pad sizes.

Flexibility: Rigid-flex PCBs offer flexibility and bending capabilities due to the presence of flexible sections. This allows them to be integrated into devices with complex geometries or those that require repeated bending or folding motions.

Space savings: The combination of rigid and flexible sections in a single board eliminates the need for additional connectors, cables, and interconnects, leading to space savings in the overall device design.

Enhanced reliability: HDI Rigid-flex PCBs exhibit improved reliability compared to traditional PCBs. Their flexible sections reduce the risk of mechanical stress and fatigue that can cause failures. Additionally, the use of advanced materials and manufacturing processes improves signal integrity and reduces the risk of electromagnetic interference (EMI).

Increased design flexibility: The combination of rigid and flexible sections allows for more freedom in designing complex layouts, especially in devices with limited space. It enables the placement of components and interconnections in multiple planes and allows for 3D configurations.

Cost-effectiveness: While HDI Rigid-flex PCBs may have a higher initial cost compared to standard rigid PCBs, they can often offer cost savings in the long run due to their space-saving capabilities, reduced need for additional components, and simplified assembly processes.

It’s important to note that these characteristics may vary depending on the specific design, materials used, and manufacturing processes employed for a particular HDI Rigid-flex PCB.

Types HDI Rigid-flex PCB

There are several types of HDI rigid-flex PCBs, each offering different configurations and capabilities to suit specific application needs. Some common types include:

Single-sided flex: This type of HDI rigid-flex PCB has a single flexible layer with components and traces on one side. It provides flexibility in one direction and is suitable for applications with limited space or simple bending requirements.

Double-sided flex: Double-sided flex HDI rigid-flex PCBs have flexible layers with components and traces on both sides. This allows for increased routing density and more complex designs compared to single-sided flex PCBs.

Multi-layer flex: Multi-layer flex HDI rigid-flex PCBs have multiple flexible layers stacked together, providing increased flexibility and design options. They can support higher component density and complex routing requirements.

Sculptured flex: Sculptured flex HDI rigid-flex PCBs have areas where the flexible material is thinned or etched away to reduce bulk and provide more flexibility in specific regions. This allows for precise bending or folding at designated areas.

Stacked rigid-flex: Stacked rigid-flex HDI PCBs combine multiple layers of rigid and flexible materials, enabling complex 3D configurations. They offer a high degree of design flexibility and are suitable for applications with intricate geometries or those requiring multiple rigid and flexible sections.

The specific type of HDI rigid-flex PCB chosen will depend on factors such as the application requirements, space limitations, bending or folding needs, component density, and design complexity. It’s important to work closely with a PCB manufacturer or engineer to determine the most suitable type for a given project.

HDI Rigid-flex PCB Vs Standard PCB Board

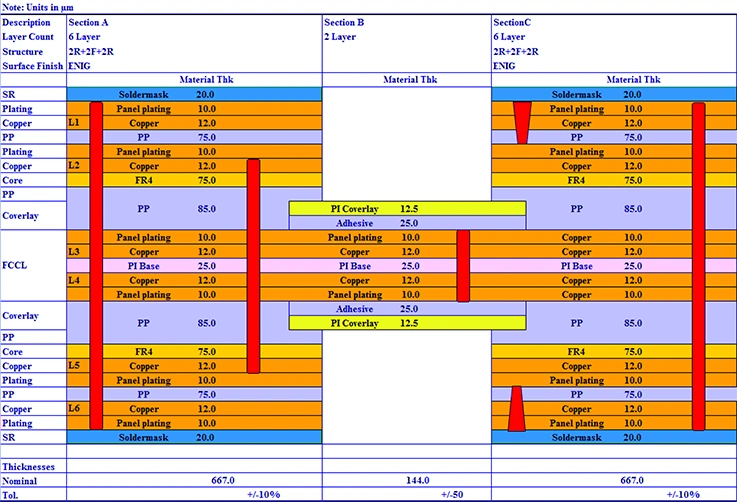

HDI Rigid-flex 6L PCB Stackup

                                                                     HDI Rigid-flex 6L PCB Stackup

HDI rigid-flex PCBs and standard PCBs differ in terms of their design, construction, capabilities, and applications. Here are some key points comparing the two:

Design Flexibility: HDI rigid-flex PCBs offer greater design flexibility compared to standard PCBs. They allow for the integration of rigid and flexible sections on a single board, enabling 3D configurations and conforming to specific device shapes. Standard PCBs are limited to rigid structures without the flexibility of bending or folding.

Space Efficiency: HDI rigid-flex PCBs are more compact and space-efficient compared to standard PCBs. The combination of rigid and flexible sections eliminates the need for additional interconnects, connectors, and cables in the device, resulting in a smaller overall footprint.

Component Density: HDI technology used in rigid-flex PCBs allows for higher component density and more advanced routing techniques, such as microvias and smaller pad sizes. This enables the design of smaller and more compact electronic devices with increased functionality. Standard PCBs generally have lower component density due to their limited routing capabilities.

Reliability: HDI rigid-flex PCBs offer enhanced reliability compared to standard PCBs. The use of flexible materials and advanced manufacturing processes reduces the risk of mechanical stress, fatigue, and damage caused by thermal expansion. This makes them suitable for applications with frequent bending or vibration.

Cost: HDI rigid-flex PCBs tend to be more expensive than standard PCBs. The complex manufacturing processes, specialized materials, and greater design complexity contribute to the higher cost of HDI rigid-flex PCBs. Standard PCBs, being simpler in design and manufacturing, are generally more cost-effective.

Applications: HDI rigid-flex PCBs are commonly used in applications that require compactness, flexibility, and reliability. Their ability to fit into space-constrained environments, withstand bending, and offer high component density makes them suitable for industries like aerospace, medical devices, consumer electronics, and automotive. Standard PCBs are widely used in a broader range of applications where flexibility and compactness are not critical factors.

When considering whether to choose HDI rigid-flex PCBs or standard PCBs, it’s important to assess the specific requirements of the application, including space limitations, desired flexibility, component density, reliability needs, and cost constraints.

HDI Multi-layer Rigid flex PCB Design Specifications

Design specifications for HDI multi-layer rigid-flex PCBs can vary depending on the specific application and requirements. However, here are some general considerations and specifications to keep in mind:

Layer stack-up:

Determine the number of rigid and flexible layers required for your design. Consider the specific functions and components that need to be placed on each layer, as well as the flexibility requirements of the flexible sections.

Routing techniques:

Utilize advanced routing techniques, such as microvias, blind vias, and buried vias, to achieve high component density and efficient signal routing between layers. Microvias are particularly useful in HDI designs to enable interconnections in dense areas.

Pad and trace sizes:

Due to higher component density, HDI rigid-flex PCBs often require smaller pad and trace sizes to accommodate more components and routing. Ensure that the selected pad and trace sizes comply with the manufacturing capabilities and the required electrical performance.

Damping materials:

Consider incorporating damping materials, such as adhesives or coverlay films, to control vibrations, reduce stress, and improve the reliability of the rigid-flex PCB.

Bending and folding requirements: Define the bending and folding requirements based on the intended use of the rigid-flex PCB. Ensure that the flexible sections and the overall design can withstand the expected bending and folding cycles without compromising functionality or reliability.

Environmental considerations:

Consider the operating environment of the PCB and choose materials, coatings, and structures that can withstand temperature variations, moisture, chemicals, or other environmental factors encountered in the application.

Signal integrity:

Pay attention to signal integrity considerations, such as controlled impedance, impedance matching, and proper signal grounding, to ensure reliable signal transmission and minimize signal interference.

Design for manufacturability (DFM):

Collaborate closely with the PCB manufacturer or engineer during the design process to ensure that the design is manufacturable and meets the capabilities and limitations of their manufacturing processes.

HDI Rigid-flex PCB Fabrication Process

The fabrication process for HDI rigid-flex PCBs involves several steps to create the desired combination of rigid and flexible sections. Here is a simplified overview of the process:

Design: Start by creating the design for the HDI rigid-flex PCB, considering the layer stack-up, component placement, routing, and other design considerations. Utilize CAD software to design the PCB layout and generate the necessary files for manufacturing.

Material selection: Choose appropriate materials for the rigid and flexible sections of the PCB. Common materials include rigid laminates (such as FR-4 or high-performance materials like polyimide or PTFE) for the rigid sections and flexible materials (such as polyimide or flexible liquid crystal polymer) for the flexible sections.

Preparing the rigid layers: Begin the fabrication process with the rigid layers of the PCB. This involves preparing the chosen rigid laminate material by applying a copper layer to both sides, applying the required protective coatings, and drilling holes for vias and component mounting.

Preparing the flexible layers: Move on to the flexible layers of the PCB. The flexible material is prepared by applying copper layers to both sides, drilling microvias, and adding necessary insulating layers.

Bonding the layers: The rigid and flexible layers are bonded together using an appropriate bonding material. This material secures the layers and ensures reliable connections between them. Adhesive-based bonding materials or coverlay films made of polyimide are commonly used in this step.

Etching and plating: The excess copper on the layers is then etched away, leaving behind the required circuit patterns. Plating processes are used to provide conductivity to the circuit traces and vias, making them electrically functional.

Finishing processes: Various finishing processes, such as applying solder mask, silkscreen printing, and surface finish (e.g., HASL, ENIG, OSP), are performed to protect the PCB and enhance its functionality and appearance.

Testing and inspection: The fabricated HDI rigid-flex PCB undergoes thorough testing and inspection to ensure its electrical performance, functionality, and adherence to quality standards. This includes electrical tests, visual inspections, and possibly specialized tests based on specific requirements.

Assembly: After fabrication, the HDI rigid-flex PCB is ready for component assembly. Surface mount technology (SMT) or through-hole technology (THT) can be used, depending on the design and application requirements.

It is worth noting that the actual fabrication process can vary depending on the specific requirements, complexity, and manufacturing capabilities.

Why HDI Rigid-flex PCB Cost Is Expensive

HDI rigid-flex PCBs tend to be more expensive compared to traditional PCBs for several reasons:

Complex manufacturing process: The fabrication process for HDI rigid-flex PCBs involves multiple intricate steps, such as laser drilling of microvias, sequential lamination of rigid and flexible layers, precise alignment of layers, and advanced plating processes. These additional steps require specialized equipment, expertise, and more time, which increases the overall manufacturing cost.

Specialized materials: HDI rigid-flex PCBs often require specialized materials, such as high-performance rigid laminates and flexible substrates like polyimide. These materials are more expensive compared to standard FR-4 laminates used in traditional PCBs. Additionally, the use of advanced materials with specific properties, such as better flexibility and thermal stability, contributes to the overall cost.

Design complexity: HDI rigid-flex PCBs are designed for high component density and complex routing requirements. Achieving such designs involves advanced routing techniques, including microvias, blind vias, and buried vias, which require additional processing steps and expertise. The increased complexity in design and manufacturing further drives up costs.

Lower production volumes: HDI rigid-flex PCBs are typically used in specialized applications with relatively lower production volumes compared to standard rigid PCBs. The smaller production volumes result in reduced economies of scale, making it less cost-effective for PCB manufacturers to produce HDI rigid-flex PCBs.

Testing and quality assurance: HDI rigid-flex PCBs undergo thorough testing and inspection to ensure their high reliability and performance. The additional testing steps, including electrical tests and specialized tests (if required), contribute to the overall cost.

Expertise and labor costs: HDI rigid-flex PCBs require specialized knowledge, skills, and equipment to design and manufacture successfully. The expertise and labor costs associated with HDI rigid-flex PCB fabrication can be higher compared to standard PCBs.

While HDI rigid-flex PCBs may have higher upfront costs, they can offer long-term benefits such as space savings, improved reliability, and enhanced functionality, which can offset the initial investment. It’s important to carefully consider the specific requirements of the application and weigh the benefits against the costs when assessing the viability of HDI rigid-flex PCBs.

Application of HDI Rigid-flex PCB

HDI rigid-flex PCBs find applications in various industries where compactness, flexibility, high component density, and reliability are crucial. Here are some notable applications of HDI rigid-flex PCBs:

●Aerospace and Defense
●Medical Devices
●Consumer Electronics
●Industrial Automation
Internet of Things (IoT)
●Communication Systems

The applications of HDI rigid-flex PCBs continue to expand as technology advances and new design possibilities emerge. The unique combination of rigidity and flexibility, coupled with advanced manufacturing techniques, allows for innovation in various industries, enabling the development of smaller, more reliable, and technologically advanced electronic devices.


HDI rigid-flex PCBs provide a versatile and powerful solution for modern electronic designs. Their ability to seamlessly integrate rigid and flexible sections allows for compact form factors, improved reliability, and enhanced functionality. HDI technology empowers these PCBs with high component density, enabling sophisticated routing techniques and smaller footprint designs.

While HDI rigid-flex PCBs come with higher manufacturing costs and design complexities, their unique benefits make them ideal for applications demanding space optimization, reliability, and flexibility, such as aerospace, medical devices, automotive, and consumer electronics. As technology advances and design requirements evolve, HDI rigid-flex PCBs are poised to play a pivotal role in shaping the future of electronics. By leveraging their capabilities and working closely with experienced PCB manufacturers and engineers, designers can unlock new possibilities and achieve innovative solutions.
